The Goal

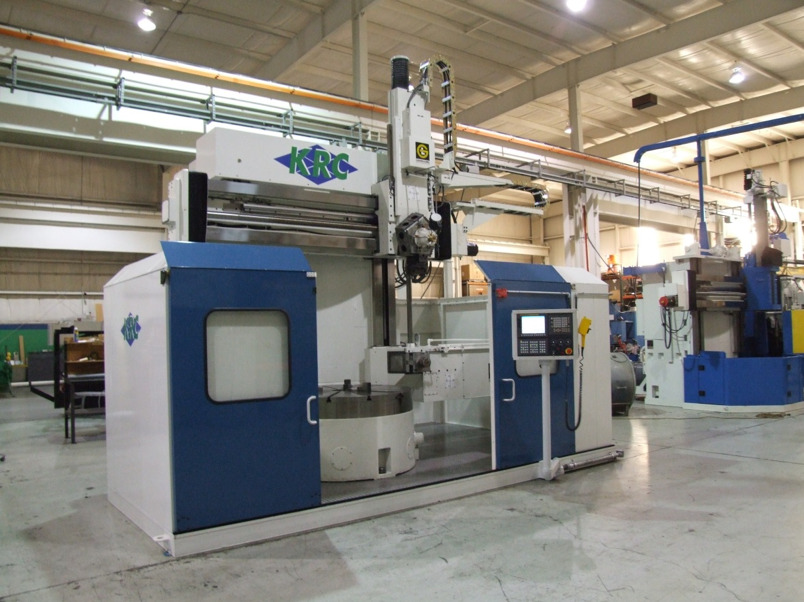

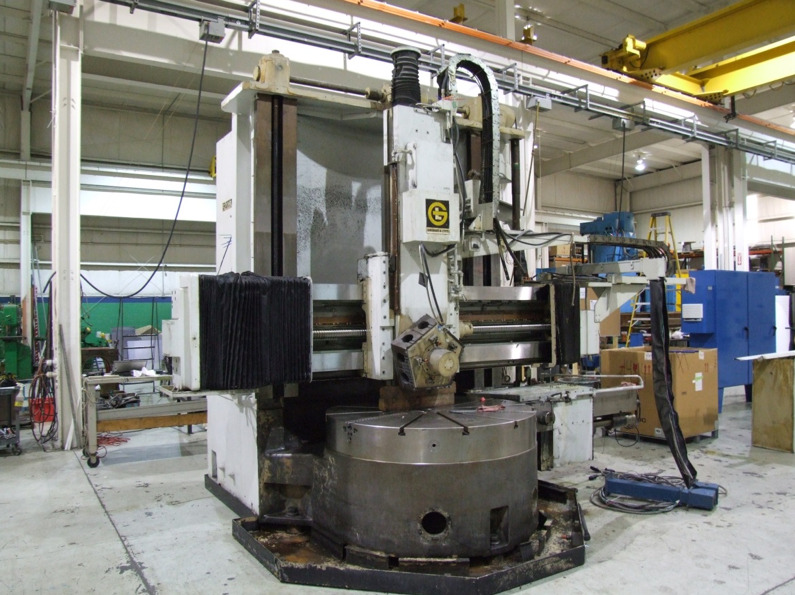

Our Customer had multiples of the same machines with identical foundations, tooling, fixturing and part programming.  We were able to rebuild and retrofit multiple machines and amortize the CNC retrofit software across all the machines to lower costs.  This remanufacture price ended up 50% - 60% of the cost of new, so it was like getting a 2 for one new machine deal.

Scope of Work

  • Complete Fanuc 0i-TD CNC Retrofit
  • New Fanuc servo motors, spindle motor and drives
  • New operators station with hand wheel box
  • Complete machine rewire and new flexible Sealtite
  • New Renishaw tool probe with custom enclosure
  • New machine Electrical documentation
  • Complete mechanical rebuild
  • X & Z-axis way grind and wear material replacement
  • New X & Z-axis ballscrews and trust bearings
  • New Acme screw for the rail positioning
  • Complete rebuild of main table & transmission
  • Complete rebuild of main turret and side head assembly
  • New lube system
  • Complete rebuild of hydraulic system with new flexible hoses
  • Complete rebuild of coolant system
  • New machine enclosure with coolant collection
  • New chip conveyor
