Giddings and Lewis 84" Vertical Turning Center
KRC Machine Tool Solutions is pleased to offer the following Certified Used Giddings and
Lewis 84" Vertical Turning Center with Live Milling for your consideration.

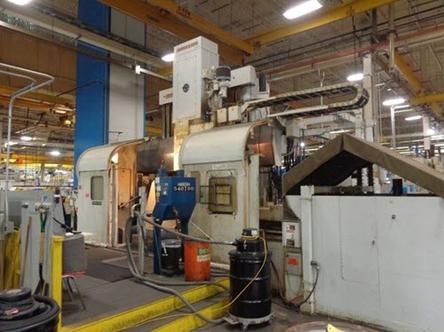

Before; Actual Machine
After; Not Actual Machine
G&L 84" Vertical Turning Center Specifications
| Model | Giddings & Lewis 84" VBM with Live Milling |
| Fanuc or Siemens CNC Retrofit 2018 | (see scope of work) |
| CNC Control | Fanuc 0i-TD |
| Table Diameter | 84" |
| Table Swing | 96" |
| Max Height Under Cross Rail | 96" |
| Vertical Ram Stroke | 50" |
| Vertical Ram Taper | #60 ANSI |
| Vertical Ram Cross Section | 10.5" x 10.5" |
| Tablw Speed (2 ranges) | 2 - 240 RPM |
| Table Load | 250,000 LBS |
| Spindle Drive | 100 HP |
| Rapid Traverse Rate | 150 IPM |
| Feed Rate | 0.1-150 IPM |
| 45 Tool ATC | yes |
| Chip-Conveyor | yes |
| High Volume Flood Coolant | yes |
| Coolant Thru Center of Ram | yes |
| Telescopic Covers (cross rail) | yes |
Machine Options
| Side Head Ram Travel | 32" |
| Side Head Ram Tool Taper | #50 ANSI |
| 24 Tool ATC | yes |
| Paint Machine | Customer Specified |
Equipped with:
- Fanuc or Siemens CNC Retrofit
- New Operators Station
- 45 Position Automatic Tool Changer
- Power Draw Bar on Ram
- 84" Plain Table w/ 16 Radial Slots
- 360,000 Degree Table Positioning
- Ballscrews & Independent Servos
- Way Covers
- Chip Conveyor
- Hardened & Ground Ways
- 25 HP Milling Spindle
- 100 HP Main Motor 460/3/60 Cycle
| F.O.B. | Kentucky Rebuild Corp., Independence, KY |
| Delivery | TBD |
| Warranty | 1 year electrical and mechanical |
*All machine specifications are subject to verification
Mechanical Features of This Proposal:
Mechanical Systems:
- Complete mechanical assembly & evaluation of the machine
- Clean & inspect ball screws and rail lifting screws
- Clean & inspect table transmission & bearings
- Rebuild lubrication system
- Rebuild hydraulics system
- Inspect all wear material
- Install new way wipers as needed
- Rebuild way covers
- Rebuild chip conveyor
- Full one-year warranty, parts and labor
Electrical Features of This Proposal:
- All new electrical & electronics including a Fanuc 0i-TD CNC
- New Fanuc Alpha AV servomotors and drives on all servo controlled axes
- Rebuild the existing 100HP Main Spindle Motor
- New pre-wired back NEMA 12 magnetic panel enclosure
- Complete rewiring of the machine
- Complete documentation package
- Full one year warranty, parts, and labor. Fanuc parts warranty - two years
*All machine specifications are subject to verification
