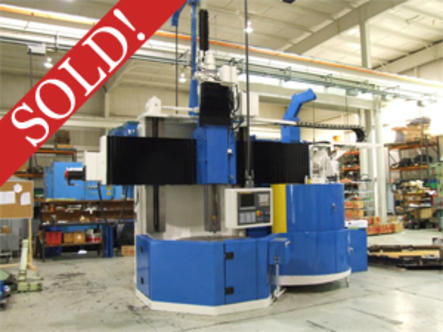

Giddings and Lewis 48" Vertical Boring Mill
This immediately available, rock-solid machine is production ready and will save your company a significant amount of money compared to new machine pricing. Machine warranty is included.
New Fanuc Oi-TB CNC control with a new operator station and a 10.4" color LCD display, new AC servo system, new DC spindle drive, new NEMA 12 electrical enclosure. This machine has been completely rewired, cleaned, and painted.
All inventory subject to prior sale (other models also in-stock for quick delivery).
Machine Specifications
| Model | 512 |
| Serial Number | 512-111-79 |
| Fanuc CNC Retrofit 2013 | (see scope of work) |
| Automatic Tool Changer | 12 Positions |
| Table Size | 48" |
| Maximum Swing | 60" |
| Maximum Facing Capacity | 60" |
| Maximum Height Under Rail | 48" |
| Vertical Travel of Rail | 36" |
| Vertical Ram Stroke | 42" |
| Ram Travel, Z-Axis | 50" |
| Ram Travel Right of Center, X-Axis | 38" |
| Ram Travel Left of Center, X-Axis | 48" |
| Ram Tool Holder Taper | #60 ANS |
| Table Speeds: INF Variable | 3.8 – 333 RPM |
| Table Speeds | 2 Ranges |
| Feed Rates (Variable) | (.01 – 100 IPM) |
| Rapid Traverse, Rail Head X & Z-Axis | 250 IPM |
| Rail Elevating Rate | 30 IPM |
Equipped With:
- Fanuc 0i-TD Retrofit (see work scope)
- New Operators Station
- 12 Position Automatic Tool Changer
- Power Draw Bar on Ram
- 48″ 3-Jaw Combination Hydraulic Chuck
- Dual Clamping Chuck Pressure
- Center Draw Rod
- Ballscrews & Independent Servos
- New Heidenhain Scales
- Way Covers
- Chip Conveyor
- Hardened & Ground Ways
- Assorted #60 Taper Tool Holders
- 60 HP MainMotor 460/3/60 Cycle
| F.O.B. | Kentucky Rebuild Corp., Independence, KY |
| Delivery | 4 Months ARO |
| Warranty | 1 year electrical and 3 month mechanical |
